Featured project 3 · Java · Web + API

Playwright for Java Framework

UI, API and network test automation with Playwright for Java and TestNG: the Sauce Demo shop and the Restful Booker API, 57 tests run in CI on Chromium, Firefox and WebKit.

View source code View documentation View latest CI runs View test report

Purpose

Shows Playwright in a Java/TestNG stack, the combination many Java teams move to from Selenium: UI tests on Sauce Demo, API tests on Restful Booker through Playwright's own request context, and network control in the browser.

Technology stack

Area	Tools
Language	Java 17
Browser and API automation	Playwright for Java 1.63 (Chromium, Firefox, WebKit; APIRequestContext)
Test runner	TestNG 7.12 (groups, data providers, parallel classes)
JSON	Jackson (Java records)
Report	Custom TestNG IReporter: one HTML file with screenshots, videos and traces
CI	GitHub Actions: one job per browser engine

Architecture overview

tests (ui, api, network, interview, framework)
      │
pages (PageFactory: @TestId, @Role, @Placeholder ...)     api (ApiClient, BookingApi, records)
      │                                                     │
BrowserManager: Playwright + browser per thread,     Playwright APIRequestContext
context per test, trace + video
      │
Chromium / Firefox / WebKit

Key engineering decisions

One Playwright and browser per thread, a fresh BrowserContext per test: isolated, fast, safe for parallel classes
An annotation-based page factory gives Selenium-style declarative locators; Playwright locators are lazy already
No waits in tests: Playwright auto-waits, and pages only wait for one element unique to the page
API tests create their own bookings and delete them afterwards, so the shared demo API is left as it was
Login failures throw the shop's own message at once instead of timing out

Implemented features

UI: login (including 5 data-driven rejections), sorting, cart, full checkout with total = item total + tax
API: auth, create, read, update, patch and delete bookings, 403 and 404 cases
Network: images blocked, no failing requests while shopping, mocked responses
Every UI test records a trace and a video; both are kept, with a full-page screenshot, only when the test fails

Setup and execution

mvn exec:java -Dexec.args="install"   # once: download Chromium, Firefox and WebKit
mvn clean test                        # all tests, headless Chromium
mvn clean test -Dbrowser=firefox      # chromium, firefox or webkit
mvn clean test -Dgroups=api           # one group

Sample test results

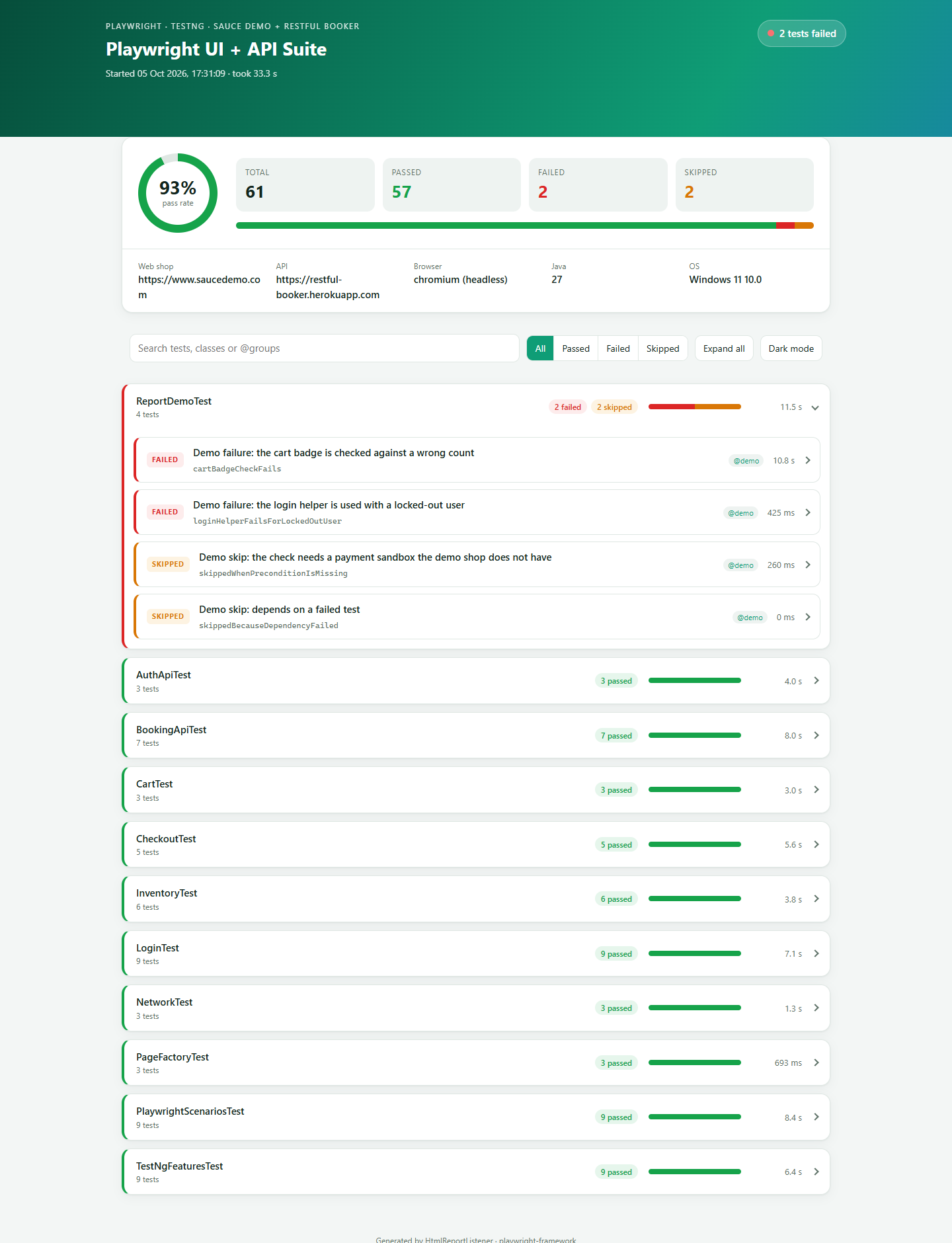

Playwright for Java HTML report — The custom HTML report (this run includes the deliberate demo failures).

CI workflow

On every push and pull request: one job each for Chromium, Firefox and WebKit; each installs its browser with the Linux libraries it needs, runs the tests headless and keeps the HTML report plus any failure screenshots, videos and traces as an artifact.

Known limitations and future improvements

Limitations

UI and API tests depend on public demo sites
The README report screenshot shows a run that includes the deliberate demo failures (run with -Pdemo)

Next steps

Publish the HTML report to GitHub Pages
Visual comparison of key pages
