REST API Automation Framework

A layered REST API test framework with Java 17, REST Assured and TestNG against the public JSONPlaceholder API, with a custom self-contained HTML report.

View source code View documentation View latest CI runs View test report

Purpose

Shows how an API framework separates the test scenario from HTTP details: tests speak in business terms, one manager per API resource handles requests, and builders do the low-level work.

Technology stack

Area	Tools
Language / build	Java 17, Maven
HTTP	REST Assured
Test runner	TestNG (soft assertions)
JSON mapping	Jackson
Logging	Log4j2
CI	GitHub Actions (CircleCI configuration also included)

Architecture overview

tests (CommentTest)          scenario in business terms, no HTTP code
      │
manager (UserManager, PostManager, CommentManager)
      │   base Manager: send request, log + assert status, map JSON
builder (RequestBuilder, ResponseBuilder)
      │
REST Assured + Jackson ──▶ JSONPlaceholder API

Key engineering decisions

One manager per API resource and no global state
Responses mapped to POJOs instead of JSON paths in tests
Soft assertions so one run reports every bad value, not just the first
Test data in a properties file, overridable with -D

Implemented features

End-to-end scenario: find a user by username, fetch all their posts, fetch all comments on those posts, validate every comment's e-mail format
Custom self-contained HTML report written by a TestNG listener

Setup and execution

mvn clean test
mvn clean test -Dusername=Bret      # other test data

Requirements: JDK 17+, Maven 3.6+, internet access (the tests call the live API).

Sample test results

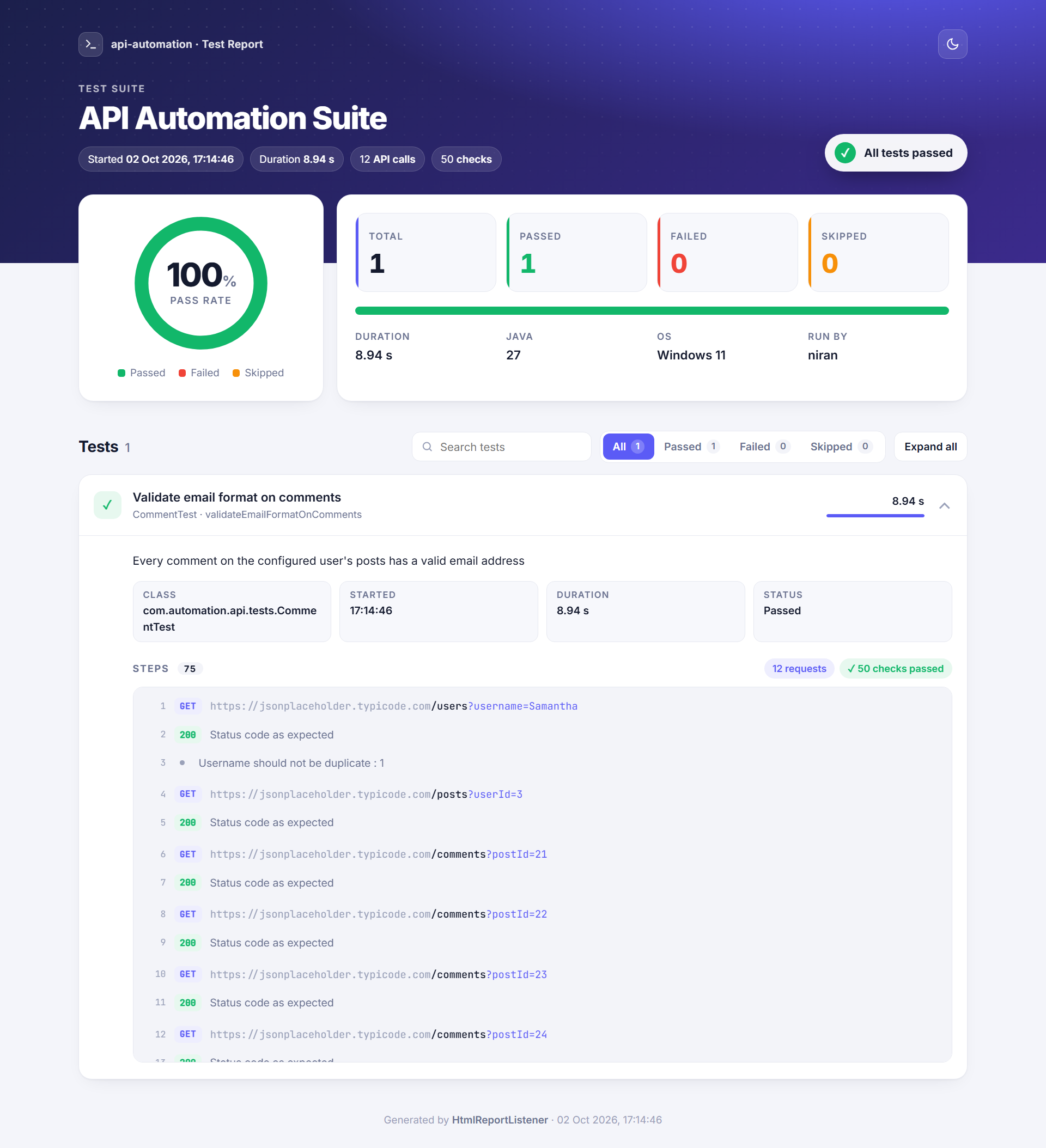

Custom HTML report of the API framework — The custom HTML report.

CI workflow

GitHub Actions runs mvn clean test on every push. A CircleCI configuration is included but not connected.

Known limitations and future improvements

Limitations

One test scenario: the project shows the framework structure rather than broad API coverage
Depends on a public API that returns fixed demo data (writes are not persisted)

Next steps

Negative tests (404, invalid payloads) and JSON schema validation
Data-driven tests across several users
See the Enterprise framework for broad API coverage (57 API tests with schema validation)
